Case Study: Component Diagram for an E-commerce System

Introduction

In this case study, we will explore the component diagram for an e-commerce system. The component diagram is a type of UML (Unified Modeling Language) diagram that shows the structural relationships between the components of a system. It provides a high-level view of the system’s architecture, highlighting the key components and their interactions.

Key Concepts

Before diving into the case study, let’s review some key concepts related to component diagrams:

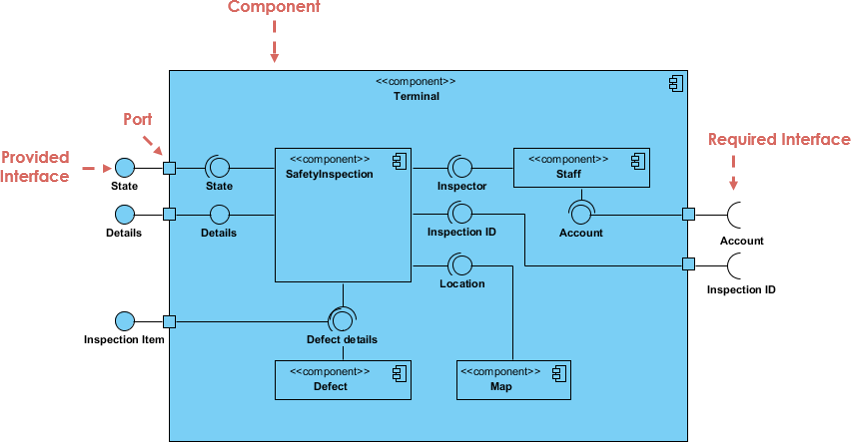

1. Component: A modular part of a system that encapsulates its implementation and provides a well-defined interface for interaction with other components.
2. Interface: A contract that specifies the operations a component provides or requires.
3. Port: A connection point between a component and its environment, representing a point of interaction.
4. Connector: A link between components or ports, representing a communication path.
5. Dependency: A relationship indicating that one component depends on another.
6. Assembly Connector: A connector that represents the assembly of components, often depicted as a ball-and-socket.
7. Delegation Connector: A connector that represents the delegation of responsibilities from one component to another.

Case Study: E-commerce System

System Overview

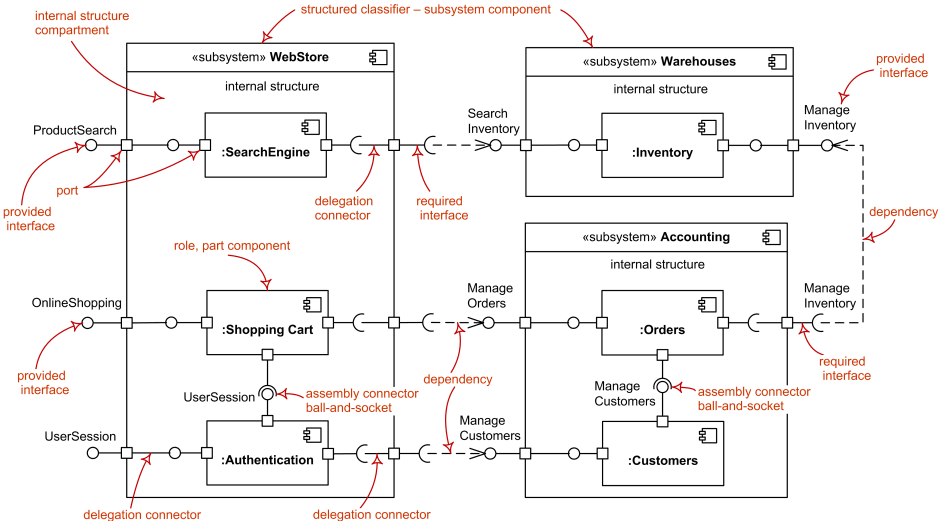

The e-commerce system consists of three main subsystems: WebStore, Warehouses, and Accounting. Each subsystem contains several components that interact to provide the system’s functionality.

Component Diagram Analysis

Subsystems and Components

1. WebStore Subsystem:
   • SearchEngine: Responsible for searching products.
   • ShoppingCart: Manages the user’s shopping cart.
   • Authentication: Handles user authentication.
2. Warehouses Subsystem:
   • Inventory: Manages the inventory of products.
3. Accounting Subsystem:
   • Orders: Manages customer orders.
   • Customers: Manages customer information.

Interfaces and Ports

• Provided Interfaces:
  • ProductSearch: Interface provided by the SearchEngine component for searching products.
  • OnlineShopping: Interface provided by the ShoppingCart component for online shopping.
  • UserSession: Interface provided by the Authentication component for managing user sessions.
  • ManageInventory: Interface provided by the Inventory component for managing inventory.
  • ManageOrders: Interface provided by the Orders component for managing orders.
  • ManageCustomers: Interface provided by the Customers component for managing customer information.
• Required Interfaces:
  • SearchInventory: Interface required by the SearchEngine component to search the inventory.
  • ManageOrders: Interface required by the ShoppingCart component to manage orders.
  • ManageCustomers: Interface required by the ShoppingCart component to manage customer information.
  • ManageInventory: Interface required by the Orders component to manage inventory.

Connectors

• Delegation Connectors:
  • The SearchEngine component delegates the search inventory task to the Inventory component.
  • The ShoppingCart component delegates the manage orders and manage customers tasks to the Orders and Customers components, respectively.
  • The Authentication component delegates the manage customers task to the Customers component.
• Assembly Connectors:
  • The ShoppingCart component is assembled with the Orders component using a ball-and-socket connector.
  • The Authentication component is assembled with the Customers component using a ball-and-socket connector.
• Dependency:
  • The SearchEngine component depends on the Inventory component.
  • The ShoppingCart component depends on the Orders and Customers components.
  • The Orders component depends on the Inventory component.

Guidelines for Creating Component Diagrams

1. Identify Key Components: Start by identifying the key components of the system and their responsibilities.
2. Define Interfaces: Define the interfaces provided and required by each component.
3. Establish Connectors: Establish the connectors between components, including delegation and assembly connectors.
4. Show Dependencies: Show the dependencies between components to highlight their relationships.
5. Use Clear Labels: Use clear and descriptive labels for components, interfaces, and connectors.
6. Keep It Simple: Keep the diagram simple and focused on the high-level architecture. Avoid including too much detail.

Conclusion

The component diagram for the e-commerce system provides a clear and concise view of the system’s architecture. It highlights the key components, their interfaces, and their interactions. By following the guidelines for creating component diagrams, you can effectively communicate the structural design of a system to stakeholders.
