Comprehensive Guide to Aligning TOGAF ADM with the Architecture Content Framework

Introduction

The TOGAF (The Open Group Architecture Framework) Architecture Development Method (ADM) is a proven approach for developing and managing the lifecycle of an enterprise architecture. The Architecture Content Framework provides a structured way to describe and organize the architectural work products developed during the ADM phases. This guide will explain how the TOGAF ADM aligns with the Architecture Content Framework, detailing the relationship between them and providing practical examples.

Understanding the TOGAF ADM

The TOGAF ADM consists of several phases, each focusing on different aspects of architecture development:

  1. Preliminary Phase: Preparation and initiation of the architecture development process.
  2. Architecture Vision: Defining the scope, stakeholders, and high-level business value.
  3. Business Architecture: Developing the business architecture to support the architecture vision.
  4. Information Systems Architectures: Developing the data and application architectures.
  5. Technology Architecture: Developing the technology architecture to support the deployment of core, mission-critical applications.
  6. Opportunities and Solutions: Identifying opportunities and developing the Architecture Roadmap.
  7. Migration Planning: Planning the implementation and migration to the new architectures.
  8. Implementation Governance: Governing the realization of the architecture.

The Architecture Content Framework

The Architecture Content Framework categorizes the inputs and outputs of each ADM phase, ensuring that all necessary components of the architecture are considered and addressed. It includes:

  1. Architecture Principles, Vision, and Requirements
  2. Architecture Definition
  3. Architecture Realization

Aligning TOGAF ADM with the Architecture Content Framework

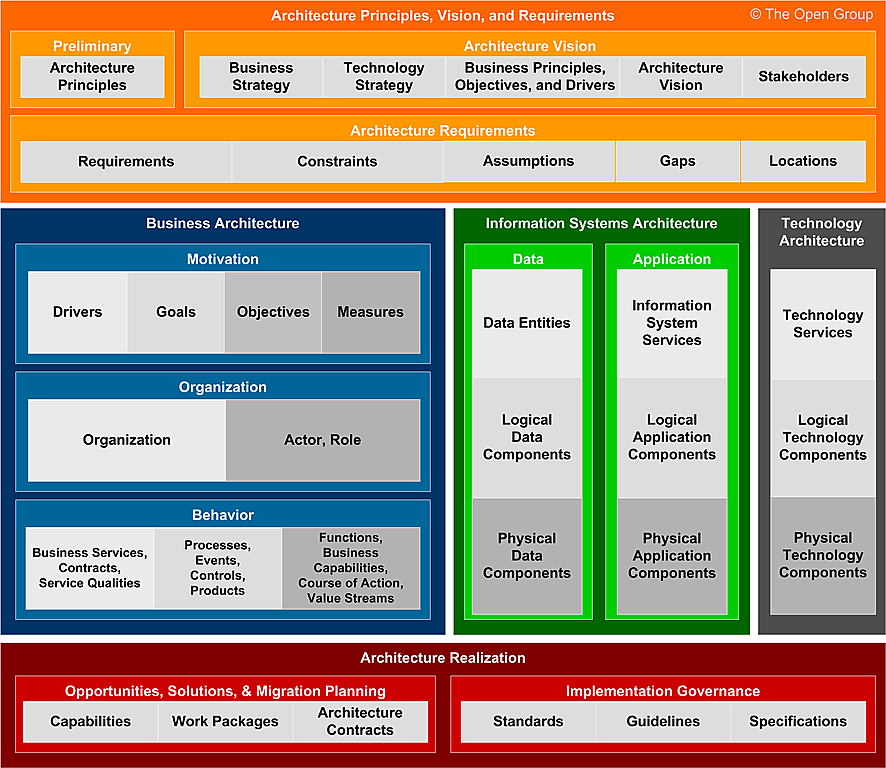

TOGAF ADM and Architecture Content Framework

1. Architecture Principles, Vision, and Requirements

This section outlines the foundational elements that guide the architecture development process.

Preliminary Architecture Principles

  • Definition: Initial principles that guide the architecture development.
  • Example: “Ensure data security and privacy in all systems.”

Architecture Vision

  • Business Strategy: Strategic goals and objectives of the business.
    • Example: “Increase market share by 15% within the next two years.”
  • Technology Strategy: Strategic goals and objectives related to technology.
    • Example: “Adopt cloud-based solutions to enhance scalability and reduce costs.”
  • Business Principles, Objectives, and Drivers: Guiding principles, objectives, and drivers for the business.
    • Example: “Improve customer satisfaction through enhanced service delivery.”
  • Architecture Vision: A high-level description of the target architecture.
    • Example: “Develop a unified customer relationship management (CRM) system to streamline sales and marketing efforts.”
  • Stakeholders: Individuals or groups with an interest in the architecture.
    • Example: Business unit heads, IT managers, and end-users.

Architecture Requirements

  • Requirements: Specific needs and constraints that the architecture must address.
    • Example: “The system must support 10,000 concurrent users.”
  • Constraints: Limitations and boundaries within which the architecture must operate.
    • Example: “The system must comply with GDPR regulations.”
  • Assumptions: Presumptions made during the architecture development process.
    • Example: “Assume that the network infrastructure will support high-speed data transfer.”
  • Gaps: Areas where the current architecture falls short and needs improvement.
    • Example: “Lack of integration between existing CRM and ERP systems.”
  • Locations: Geographical or organizational locations relevant to the architecture.
    • Example: “Data centers in Europe and North America.”

2. Architecture Definition

This section defines the motivation, organization, and behavior of the architecture across different domains: Business Architecture, Information Systems Architecture, and Technology Architecture.

Business Architecture

  • Motivation:
    • Drivers: Factors that drive the need for the architecture.
      • Example: “Need for improved customer data management.”
    • Goals: Broad, long-term objectives of the architecture.
      • Example: “Achieve a 360-degree view of the customer.”
    • Objectives: Specific, measurable targets that the architecture aims to achieve.
      • Example: “Reduce customer response time by 50%.”
    • Measures: Metrics used to evaluate the success of the architecture.
      • Example: “Customer satisfaction scores, response times.”
  • Organization:
    • Organization: The structure and roles within the organization.
      • Example: “Sales, Marketing, and Customer Service departments.”
    • Actor, Role: Specific roles and actors involved in the architecture.
      • Example: “Sales Representative, Customer Service Agent.”
  • Behavior:
    • Business Services, Contracts, Service Qualities: Services provided by the business and the agreements governing them.
      • Example: “Customer support services with a 99% uptime guarantee.”
    • Processes, Events, Controls, Products: Business processes, events, controls, and products.
      • Example: “Order processing, customer feedback events.”
    • Functions, Business Capabilities, Course of Action, Value Streams: Business functions, capabilities, actions, and value streams.
      • Example: “Customer relationship management, sales analytics.”

Information Systems Architecture

  • Data:
    • Data Entities: Specific data elements relevant to the architecture.
      • Example: “Customer profile, order history.”
    • Logical Data Components: Logical groupings of data.
      • Example: “Customer data model, product catalog.”
    • Physical Data Components: Physical storage and management of data.
      • Example: “Database schemas, data warehouses.”
  • Application:
    • Information System Services: Services provided by information systems.
      • Example: “Customer data management services.”
    • Logical Application Components: Logical groupings of application functionality.
      • Example: “CRM modules, sales analytics tools.”
    • Physical Application Components: Physical implementation of application functionality.
      • Example: “CRM software, data analytics platforms.”

Technology Architecture

  • Technology Services: Services provided by technology components.
    • Example: “Network services, cloud computing services.”
  • Logical Technology Components: Logical groupings of technology components.
    • Example: “Network architecture, cloud infrastructure.”
  • Physical Technology Components: Physical implementation of technology components.
    • Example: “Servers, routers, data centers.”

3. Architecture Realization

This section focuses on the realization of the architecture through opportunities, solutions, migration planning, and governance.

Opportunities, Solutions, and Migration Planning

  • Capabilities: The abilities of the architecture to perform specific functions.
    • Example: “Real-time data processing, scalable infrastructure.”
  • Work Packages: Specific tasks or projects to implement the architecture.
    • Example: “CRM system implementation project.”
  • Architecture Contracts: Agreements governing the implementation of the architecture.
    • Example: “Service Level Agreements (SLAs) with vendors.”

Implementation Governance

  • Standards: Established norms and guidelines for architecture implementation.
    • Example: “Data security standards, coding standards.”
  • Guidelines: Recommendations for architecture implementation.
    • Example: “Best practices for cloud migration.”
  • Specifications: Detailed descriptions of architecture components and their implementation.
    • Example: “Technical specifications for CRM system integration.”

Practical Examples of Alignment

Preliminary Phase

  • Activities: Define preliminary architecture principles and gather initial requirements.
  • Example: Define the principle of data security and identify the need for a unified CRM system.

Architecture Vision Phase

  • Activities: Develop the architecture vision, including business and technology strategies, principles, objectives, and drivers.
  • Example: Create a vision for a unified CRM system that supports sales and marketing efforts.

Business Architecture Phase

  • Activities: Define the business architecture, including motivation, organization, and behavior.
  • Example: Identify the drivers for improved customer data management and define the roles and processes involved in customer relationship management.

Information Systems Architectures Phase

  • Activities: Define the data and application architectures.
  • Example: Design the data entities and logical data components for the CRM system and specify the application services and components.

Technology Architecture Phase

  • Activities: Define the technology architecture.
  • Example: Specify the technology services, logical technology components, and physical technology components required to support the CRM system.

Opportunities and Solutions Phase

  • Activities: Identify opportunities, define solutions, and plan migration.
  • Example: Identify the capability for real-time data processing and plan the implementation of the CRM system.

Migration Planning Phase

  • Activities: Plan the migration to the new architecture.
  • Example: Develop work packages and architecture contracts for the CRM system implementation.

Implementation Governance Phase

  • Activities: Govern the implementation of the architecture.
  • Example: Establish standards, guidelines, and specifications for the CRM system implementation.

Conclusion

Aligning the TOGAF ADM with the Architecture Content Framework ensures that all aspects of the architecture are considered and addressed throughout the development lifecycle. This structured approach helps in creating a cohesive and effective enterprise architecture that supports business goals and objectives. By following this guide, organizations can effectively organize and manage the various outputs and deliverables of the TOGAF ADM process, ensuring consistency, completeness, and alignment with strategic objectives.
