Introduction

The ArchiMate framework includes Motivation elements designed to model the motivations or reasons guiding the design or change of an Enterprise Architecture (EA). These motivations influence, guide, and constrain the architecture’s design, ensuring it aligns with the enterprise’s context and intentions. This guide explores the purpose and application of Motivation elements in ArchiMate, particularly their role in supporting the TOGAF Architecture Development Method (ADM).

Understanding Motivation Elements

Purpose of Motivation Elements

Motivation elements in ArchiMate help model the reasons behind the design or change of an Enterprise Architecture. They address how the EA aligns with its context, described by intentions. These elements are crucial for:

  • Identification: Recognizing the goals and requirements at the business level.
  • Description: Clearly defining these goals and requirements.
  • Analysis: Evaluating the goals and requirements to understand their impact.
  • Validation: Ensuring the goals and requirements are realistic and achievable.

Role in TOGAF ADM

The Motivation Extension in ArchiMate supports the early phases of the TOGAF ADM, specifically the Preliminary Phase and Phase A (Architecture Vision), the Requirements Management process, and partly Phase H (Architecture Change Management). It aids in:

  • Preliminary Phase: Establishing the architecture effort’s scope, goals, and principles.
  • Phase A (Architecture Vision): Defining the business value and stakeholders’ concerns.
  • Requirements Management: Managing and tracing requirements throughout the architecture development process.
  • Phase H (Architecture Change Management): Managing changes to the architecture and ensuring continuous alignment with business goals.

Key Motivation Elements

Stakeholder

  • Definition: An individual, team, or organization with interests or concerns in the architecture.
  • Usage: Identifies who is affected by or has an interest in the architecture.

Driver

  • Definition: An external or internal factor that motivates a change.
  • Usage: Describes the reasons behind the need for change, such as market trends, regulatory requirements, or technological advancements.

Assessment

  • Definition: An evaluation of the impact of a driver on the organization.
  • Usage: Assesses the significance and potential impact of drivers on the enterprise.

Goal

  • Definition: A desired state or outcome that the organization aims to achieve.
  • Usage: Defines the business objectives and strategic goals that the architecture should support.

Outcome

  • Definition: The result of achieving a goal.
  • Usage: Describes the expected benefits or consequences of achieving the defined goals.

Requirement

  • Definition: A statement of need that must be met by the architecture.
  • Usage: Specifies the conditions or capabilities that the architecture must fulfill.

Constraint

  • Definition: A limitation or restriction that affects the architecture.
  • Usage: Identifies the boundaries and limitations that the architecture must adhere to.

Principle

  • Definition: A fundamental rule or guideline that influences decision-making.
  • Usage: Provides the guiding principles that govern the architecture’s design and implementation.

Applying Motivation Elements in TOGAF ADM

Preliminary Phase

  • Identify Stakeholders: Determine who the key stakeholders are and their interests.
  • Define Principles: Establish the guiding principles that will govern the architecture effort.
  • Set Goals: Outline the high-level business goals that the architecture aims to achieve.

Phase A: Architecture Vision

  • Analyze Drivers: Identify the drivers for change and assess their impact.
  • Formulate Goals: Define the specific goals that the architecture should support.
  • Capture Requirements: Document the requirements that must be met by the architecture.

Requirements Management

  • Trace Requirements: Ensure that requirements are traceable throughout the architecture development process.
  • Validate Requirements: Confirm that the requirements are realistic and achievable.

Phase H: Architecture Change Management

  • Monitor Changes: Continuously monitor and manage changes to the architecture.
  • Align with Goals: Ensure that the architecture remains aligned with the business goals and principles.

Case Study: Motivation Layer: ArchiMate Diagram

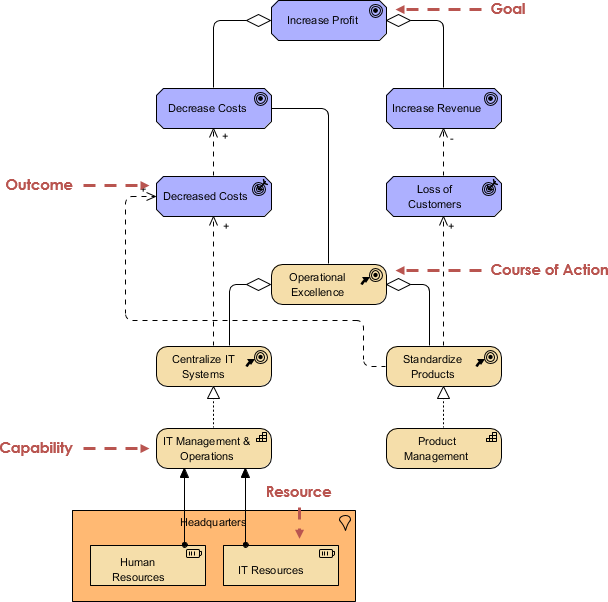

The ArchiMate diagram provides a comprehensive view of how various elements in the ArchiMate framework interact to achieve a specific goal, in this case, “Increase Profit.” It illustrates the relationships between goals, outcomes, courses of action, capabilities, and resources. Here’s a detailed interpretation of the diagram:



Key Elements

  1. Goal
    • Increase Profit: The overarching objective that the organization aims to achieve.
  2. Outcome
    • Decreased Costs: A result of reducing operational expenses.
    • Increased Revenue: A result of generating more sales or income.
    • Loss of Customers: A potential negative outcome that needs to be managed.
  3. Course of Action
    • Operational Excellence: The strategy or approach to achieve operational efficiency and effectiveness.
    • Centralize IT Systems: A specific action to consolidate IT infrastructure.
    • Standardize Products: A specific action to create uniformity in product offerings.
  4. Capability
    • IT Management & Operations: The ability to manage and operate IT systems effectively.
    • Product Management: The ability to manage the product lifecycle and offerings.
  5. Resource
    • Headquarter: The central location where resources are managed.
    • Human Resources: The workforce required to execute capabilities.
    • IT Resources: The technological infrastructure and tools needed to support capabilities.

Relationships

  1. Association
    • Goal to Outcome: The goal “Increase Profit” is associated with the outcomes “Decreased Costs” and “Increased Revenue.” This indicates that achieving the goal depends on these outcomes.
    • Outcome to Course of Action: The outcomes are associated with the course of action “Operational Excellence,” showing that operational excellence is a key factor in achieving these outcomes.
    • Course of Action to Capability: The courses of action “Centralize IT Systems” and “Standardize Products” are associated with the capabilities “IT Management & Operations” and “Product Management,” respectively. This indicates that these capabilities are necessary to execute the courses of action.
    • Capability to Resource: The capabilities are associated with the resources “Headquarter,” “Human Resources,” and “IT Resources,” showing that these resources are required to support the capabilities.
  2. Realization
    • Course of Action to Outcome: The course of action “Operational Excellence” realizes the outcomes “Decreased Costs” and “Increased Revenue.” This means that operational excellence directly contributes to achieving these outcomes.
  3. Influence
    • Outcome to Outcome: The outcome “Decreased Costs” has a positive influence on “Operational Excellence,” and the outcome “Loss of Customers” has a negative influence on “Operational Excellence.” This indicates that decreased costs support operational excellence, while the loss of customers hinders it.

Detailed Explanation

  • Goal: Increase Profit
    • The primary objective is to increase profit, which can be achieved through two main outcomes: decreasing costs and increasing revenue.
  • Outcomes
    • Decreased Costs: This outcome is positively influenced by operational excellence and contributes to increasing profit.
    • Increased Revenue: This outcome is also positively influenced by operational excellence and contributes to increasing profit.
    • Loss of Customers: This is a potential negative outcome that can hinder operational excellence and, consequently, the goal of increasing profit.
  • Course of Action: Operational Excellence
    • Operational excellence is the key strategy to achieve the outcomes of decreased costs and increased revenue. It is supported by specific actions such as centralizing IT systems and standardizing products.
  • Capabilities
    • IT Management & Operations: This capability is essential for centralizing IT systems and ensuring that IT resources are managed effectively.
    • Product Management: This capability is necessary for standardizing products and ensuring that product offerings are uniform and meet customer needs.
  • Resources
    • Headquarter: The central location where human resources and IT resources are managed.
    • Human Resources: The workforce that executes the capabilities and supports the courses of action.
    • IT Resources: The technological infrastructure that supports IT management and operations.

The ArchiMate diagram effectively illustrates how various elements in the ArchiMate framework interact to achieve the goal of increasing profit. By identifying the outcomes, courses of action, capabilities, and resources, the organization can develop a comprehensive strategy to achieve its objectives. This approach supports the TOGAF ADM by providing a clear and structured way to model the motivations and reasons behind the design or change of an Enterprise Architecture.

Conclusion

Motivation elements in ArchiMate play a pivotal role in modeling the reasons behind the design or change of an Enterprise Architecture. They support the early phases of the TOGAF ADM, helping to identify, describe, analyze, and validate goals and requirements at the business level. By using the Motivation layer, enterprises can ensure that their architecture aligns with their context and intentions, driving successful outcomes and continuous improvement.

For more detailed information on the different types of Motivation elements and their applications, refer to the provided sources.
