The ArchiMate language provides a structured framework for classifying and organizing the elements of an enterprise architecture. It offers two main frameworks: the Core Framework and the Full Framework. This guide will walk you through both frameworks, their components, and their applications.

ArchiMate Core Framework

The ArchiMate Core Framework is a 3×3 matrix that classifies elements based on three layers and three aspects. This framework focuses on modeling the core structure and behavior of an enterprise.

Layers

1. Business Layer
   • Focus: Models the business services offered to customers.
   • Elements:
     • Business Processes: Activities that create value for customers.
     • Business Actors: Entities that perform business roles.
   • Purpose: Represents the high-level services and processes that directly interact with customers and stakeholders.
2. Application Layer
   • Focus: Represents the application services that support the business layer.
   • Elements:
     • Application Services: Services provided by software applications.
     • Applications: The actual applications that realize these services.
   • Purpose: Provides the software applications and services that enable business processes.
3. Technology Layer
   • Focus: Models the infrastructure services required to run applications.
   • Elements:
     • Infrastructure Services: Services like processing, storage, and communication.
     • Hardware and Software Components: Physical and system software components.
   • Purpose: Offers the foundational infrastructure needed to support application services.

Aspects

1. Active Structure
   • Focus: Represents the elements that perform behavior.
   • Elements:
     • Business Actors: Entities that perform business roles.
     • Application Components: Parts of software applications.
     • Technology Nodes: Physical or virtual components in the technology layer.
   • Purpose: Represents the “subjects” or entities that carry out activities.
2. Behavior
   • Focus: Represents the actions performed by active structure elements.
   • Elements:
     • Business Processes: Activities that create value for customers.
     • Application Functions: Functions performed by software applications.
     • Technology Services: Services provided by technology components.
   • Purpose: Describes the dynamic actions and processes within the enterprise.
3. Passive Structure
   • Focus: Represents the objects acted upon by behavior elements.
   • Elements:
     • Business Objects: Information or objects used in business processes.
     • Data Objects: Data used by application functions.
     • Technology Artifacts: Objects used by technology services.
   • Purpose: Represents the static elements that are acted upon by behavior elements.

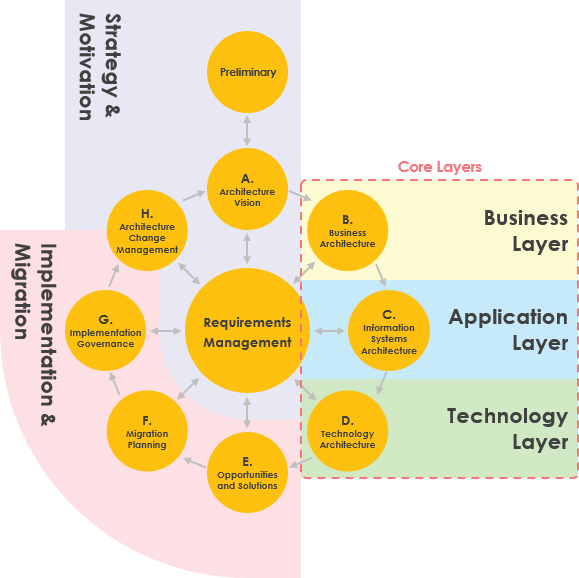

ArchiMate Full Framework

The ArchiMate Full Framework extends the Core Framework by adding more layers and an aspect to provide a more comprehensive view of the enterprise.

Additional Layers

1. Motivation Layer
   • Focus: Captures the motivations behind the architecture.
   • Elements:
     • Stakeholders: Entities with an interest in the architecture.
     • Drivers: Factors that motivate change.
     • Goals: Objectives to be achieved.
     • Constraints: Limitations that affect the architecture.
   • Purpose: Helps understand the drivers and goals behind architectural decisions.
2. Strategy Layer
   • Focus: Models the strategic direction and choices of the enterprise.
   • Elements:
     • Capabilities: Abilities required to achieve goals.
     • Resources: Assets needed to support capabilities.
     • Courses of Action: Plans to achieve strategic objectives.
   • Purpose: Represents the strategic capabilities and resources of the organization.
3. Physical Layer
   • Focus: Represents the physical elements of the enterprise.
   • Elements:
     • Facilities: Physical locations and buildings.
     • Equipment: Machinery and tools.
     • Distribution Networks: Systems for distributing goods and services.
   • Purpose: Includes physical elements like facilities, equipment, and distribution networks.
4. Implementation & Migration Layer
   • Focus: Models the implementation and migration of the architecture.
   • Elements:
     • Work Packages: Units of work to be completed.
     • Deliverables: Outputs of work packages.
     • Plateaus: Stable states of the architecture.
     • Gaps: Differences between current and desired states.
   • Purpose: Describes the transition and migration processes from the current to the future state of the architecture.

Aspects

The Full Framework includes all three aspects from the Core Framework:

1. Active Structure
2. Behavior
3. Passive Structure

Choosing Between the Core and Full Framework

The choice between the Core Framework and the Full Framework depends on the specific modeling needs and the scope of the architectural description. The Full Framework allows for a more holistic representation of the enterprise architecture, addressing aspects like motivation, strategy, and physical implementation that are not covered in the Core Framework.
