Understanding UML Sequence Diagrams: A Comprehensive Guide

Introduction

Unified Modeling Language (UML) sequence diagrams are essential tools in software engineering for visualizing how objects interact in a particular scenario of a use case. They provide a clear representation of the sequence of messages exchanged between objects over time, making them invaluable for understanding the dynamic behavior of a system. This article will delve into the components and significance of UML sequence diagrams, using an example of a safety inspection scheduling system to illustrate the concepts.

Components of a UML Sequence Diagram

A UML sequence diagram consists of several key components:

1. Actors: Represent the users or external systems that interact with the system. In the safety inspection example, the actor is the “Inspector.”
2. Lifelines: Vertical lines that represent the existence of an object or actor over time.
3. Messages: Horizontal arrows that represent the communication between lifelines. Messages can be synchronous (solid arrows) or asynchronous (dashed arrows).
4. Activation Bars: Rectangular boxes on lifelines that indicate the period during which an object is performing an operation.
5. Frames: Rectangular boxes that enclose a set of interactions, representing a specific condition or loop.

Safety Inspection Scheduling System Sequence Diagram Analysis

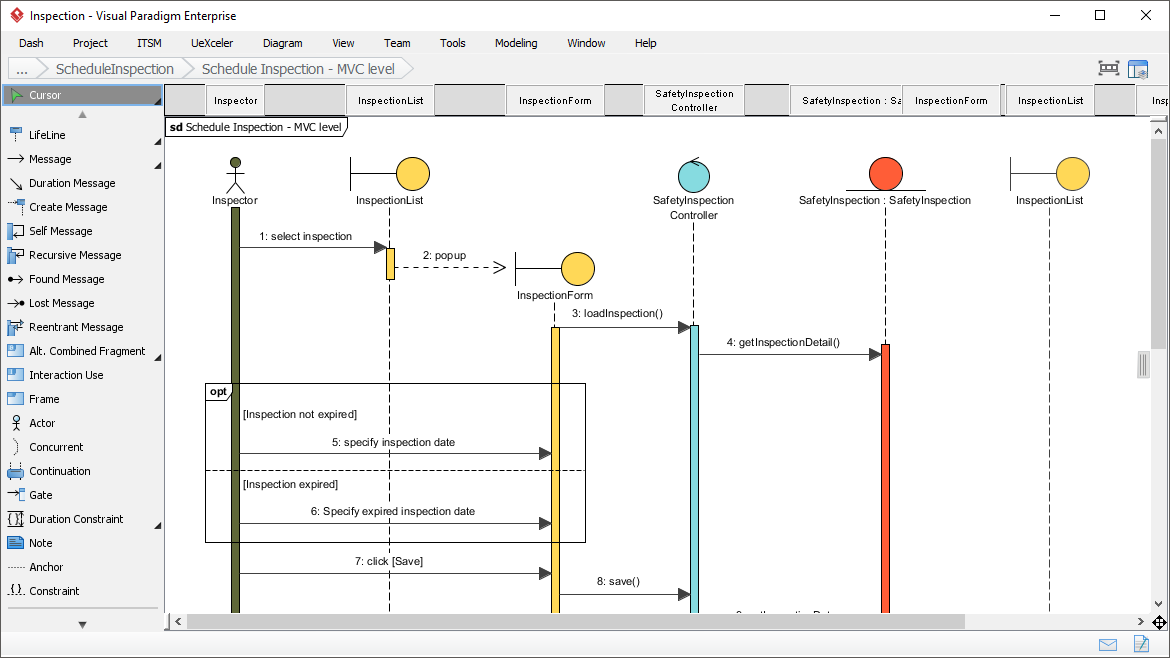

Let’s analyze the safety inspection scheduling system sequence diagram provided:

Actors and Lifelines

• Inspector: The primary actor who initiates the inspection scheduling process.
• InspectionList: A lifeline representing the list of inspections.
• InspectionForm: A lifeline representing the form used to input inspection details.
• SafetyInspectionController: A lifeline representing the controller that manages the inspection process.
• SafetyInspection: A lifeline representing the inspection object.

Messages and Interactions

1. Inspector selects an inspection: The process begins when the Inspector selects an inspection from the InspectionList.
2. Popup InspectionForm: The InspectionList sends a message to pop up the InspectionForm.
3. Load Inspection: The InspectionForm sends a message to the SafetyInspectionController to load the selected inspection.
4. Get Inspection Details: The SafetyInspectionController retrieves the details of the selected inspection from the SafetyInspection object.
5. Inspection not expired: If the inspection is not expired, the Inspector specifies the inspection date.
6. Inspection expired: If the inspection is expired, the Inspector specifies the expired inspection date.
7. Click Save: The Inspector clicks the save button on the InspectionForm.
8. Save Inspection: The InspectionForm sends a message to the SafetyInspectionController to save the inspection details.

Activation Bars and Frames

• Activation Bars: The rectangular boxes on the lifelines indicate the periods during which the objects are active. For example, the InspectionForm is active while loading and saving the inspection details.
• Frames: The opt frame represents an optional condition where the inspection may or may not be expired. The interactions within this frame are only executed if the inspection is expired.

Significance of UML Sequence Diagrams

UML sequence diagrams are instrumental in the software development process for several reasons:

1. System Design: They help in visualizing the dynamic behavior of a system by showing the sequence of interactions between objects.
2. Communication: They serve as a visual aid for stakeholders to understand the system’s behavior without delving into technical details.
3. Requirement Analysis: They assist in identifying and documenting the system’s requirements by illustrating the interactions between objects.
4. Testing: They provide a basis for creating test cases to verify that the system meets the specified requirements.

Conclusion

UML sequence diagrams are a powerful tool in software engineering for visualizing the dynamic behavior of a system. By illustrating the sequence of interactions between objects, these diagrams facilitate better communication, requirement analysis, and system design. The safety inspection scheduling system example demonstrates how sequence diagrams can effectively capture the essential interactions within a system, ensuring a comprehensive understanding of its behavior. Whether you are a beginner or an experienced developer, UML sequence diagrams provide the tools and insights needed to design and document complex systems effectively.
