Understanding UML Use Case Diagrams: A Comprehensive Guide

Introduction

Unified Modeling Language (UML) is a standardized modeling language used in software engineering to visualize the design of a system. One of the key diagrams in UML is the Use Case Diagram, which helps in identifying the functional requirements of a system by illustrating the interactions between users (actors) and the system. This article will delve into the components and significance of a UML Use Case Diagram, using an ATM system as an example.

Components of a UML Use Case Diagram

A UML Use Case Diagram consists of several essential components:

  1. Actors: Represent the users or external systems that interact with the system. In the ATM example, the actor is the “User.”
  2. Use Cases: Describe the specific functions or services that the system provides to the actors. Each use case represents a unique interaction.
  3. Relationships:
    • Association: A simple line connecting an actor to a use case, indicating that the actor participates in that use case.
    • Include: A dashed arrow pointing from one use case to another, signifying that the target use case is included in the source use case.
    • Extend: A dashed arrow with an open arrowhead pointing from one use case to another, indicating that the target use case extends the behavior of the source use case under certain conditions.
    • Generalization: A solid line with a hollow arrowhead pointing from one use case to another, showing an inheritance relationship where the child use case inherits the behavior of the parent use case.

ATM System Use Case Diagram Analysis

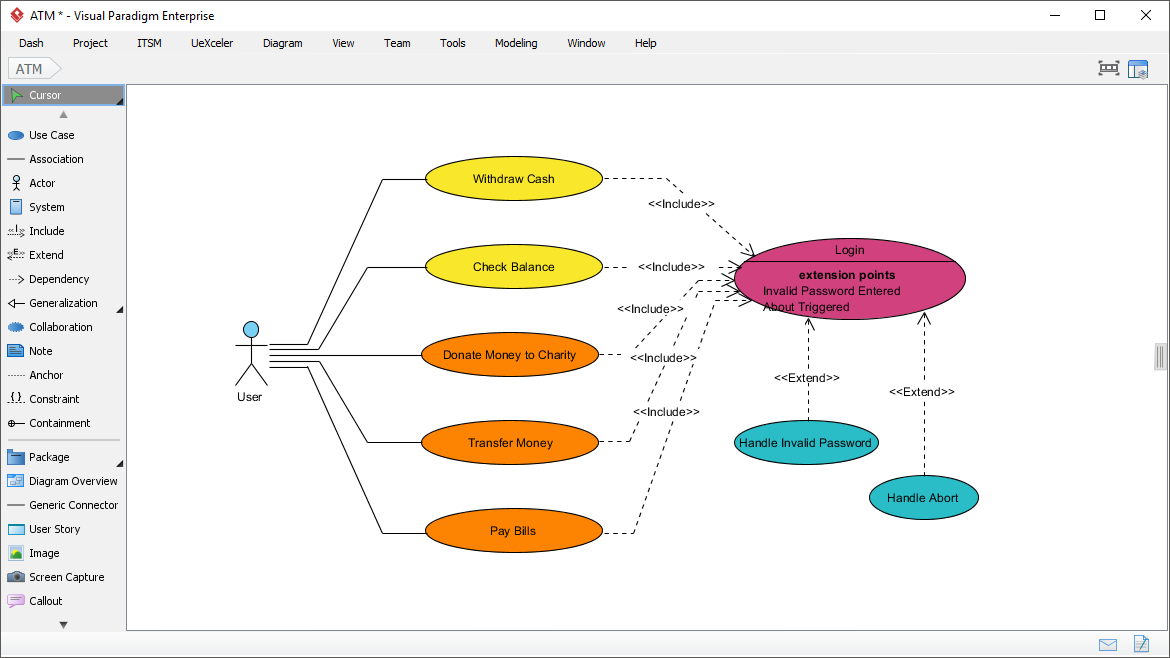

Let’s analyze the ATM system Use Case Diagram provided:

Use case diagram

Actors

  • User: The primary actor who interacts with the ATM system to perform various transactions.

Use Cases

  1. Withdraw Cash: Allows the user to withdraw money from their account.
  2. Check Balance: Enables the user to view their account balance.
  3. Donate Money to Charity: Allows the user to donate money to a charity through the ATM.
  4. Transfer Money: Enables the user to transfer funds from their account to another account.
  5. Pay Bills: Allows the user to pay bills using the ATM.
  6. Login: A critical use case that involves the user logging into the system, which is a prerequisite for other transactions.
  7. Handle Invalid Password: Manages the scenario where the user enters an invalid password.
  8. Handle Abort: Manages the scenario where the user aborts a transaction.

Relationships

  • Include Relationships:
    • The “Login” use case is included in all other use cases, as logging in is a prerequisite for performing any transaction.
  • Extend Relationships:
    • The “Handle Invalid Password” and “Handle Abort” use cases extend the “Login” use case, indicating that these scenarios are additional behaviors that can occur during the login process.

Significance of Use Case Diagrams

Use Case Diagrams are instrumental in the early stages of system development for several reasons:

  1. Requirement Gathering: They help in identifying and documenting the functional requirements of the system.
  2. Communication: They serve as a visual aid for stakeholders to understand the system’s functionality without delving into technical details.
  3. Design Validation: They assist in validating the system design by ensuring that all necessary interactions between actors and the system are accounted for.
  4. Testing: They provide a basis for creating test cases to verify that the system meets the specified requirements.

The Ideal Tool for UML Use Case Modeling

Unified Modeling Language (UML) use case diagrams are essential for visualizing the functional requirements of a system by illustrating the interactions between users (actors) and the system. Choosing the right tool for creating these diagrams is crucial for effective system design and communication. Visual Paradigm stands out as an ideal tool for UML use case modeling due to its comprehensive features, user-friendly interface, and robust support for various modeling needs.

Comprehensive Features

1. Rich UML Diagram Support

Visual Paradigm offers a wide range of UML diagrams, including use case diagrams, class diagrams, sequence diagrams, and more. This comprehensive support allows users to create a complete and coherent model of their system, ensuring that all aspects are covered.

2. Intuitive User Interface

The tool provides an intuitive and user-friendly interface that makes it easy for both beginners and experienced users to create and manage UML diagrams. The drag-and-drop functionality, along with context-sensitive menus, simplifies the process of adding actors, use cases, and relationships.

3. Advanced Modeling Tools

Visual Paradigm includes advanced modeling tools such as model-driven architecture (MDA) support, which allows for the generation of code from models and vice versa. This feature is particularly useful for ensuring consistency between the design and implementation phases of a project.

4. Collaboration and Teamwork

The tool supports collaborative work through features like teamwork servers, version control, and real-time collaboration. This makes it easier for teams to work together on the same project, ensuring that everyone is on the same page and that changes are tracked and managed effectively.

5. Integration with Other Tools

Visual Paradigm integrates seamlessly with other development tools and platforms, such as IDEs, version control systems, and project management tools. This integration streamlines the workflow and enhances productivity by allowing users to switch between different tools without losing context.

User-Friendly Interface

1. Easy to Learn and Use

The interface of Visual Paradigm is designed to be intuitive and easy to learn. Users can quickly get started with creating use case diagrams without needing extensive training. The tool provides helpful guides, tutorials, and templates to assist users in creating accurate and effective diagrams.

2. Customizable Workspace

The workspace in Visual Paradigm is highly customizable, allowing users to tailor the environment to their specific needs. Users can arrange toolbars, panels, and windows to suit their workflow, making the modeling process more efficient and enjoyable.

3. Real-Time Validation

The tool offers real-time validation of diagrams, ensuring that users adhere to UML standards and best practices. This feature helps in identifying and correcting errors early in the design process, saving time and effort in the long run.

Robust Support and Resources

1. Extensive Documentation

Visual Paradigm provides extensive documentation, including user guides, tutorials, and examples, to help users get the most out of the tool. The documentation covers a wide range of topics, from basic usage to advanced features, making it a valuable resource for users at all levels.

2. Community and Support

The tool has a vibrant community of users who share tips, tricks, and best practices. Additionally, Visual Paradigm offers responsive customer support to assist users with any issues or questions they may have. This support ensures that users can quickly resolve problems and continue with their modeling tasks.

3. Regular Updates

Visual Paradigm is regularly updated with new features, improvements, and bug fixes. This commitment to continuous improvement ensures that users have access to the latest tools and technologies, enhancing their modeling capabilities and keeping them up-to-date with industry standards.

Conclusion

UML Use Case Diagrams are a powerful tool in the software development process, providing a clear and concise representation of the system’s functional requirements. By illustrating the interactions between actors and the system, these diagrams facilitate better communication, requirement gathering, and design validation. The ATM system example demonstrates how Use Case Diagrams can effectively capture the essential functions and relationships within a system, ensuring a comprehensive understanding of its behavior.

Visual Paradigm is the ideal tool for UML use case modeling due to its comprehensive features, user-friendly interface, and robust support. Its rich UML diagram support, advanced modeling tools, and collaboration features make it a powerful and versatile tool for system design. The intuitive interface, real-time validation, and extensive documentation further enhance the user experience, making it easier for users to create accurate and effective use case diagrams. Whether you are a beginner or an experienced modeler, Visual Paradigm provides the tools and resources you need to succeed in your UML modeling endeavors.
